D series three-phase power regulator

Fully digital control, high stability

Multiple analog input interfaces

2000:1 high-resolution adjustable output

No auxiliary power supply required

Support start/stop terminal wiring

D series three-phase power regulator

Fully digital control, high stability

Multiple analog input interfaces

2000:1 high-resolution adjustable output

No auxiliary power supply required

Support start/stop terminal wiring

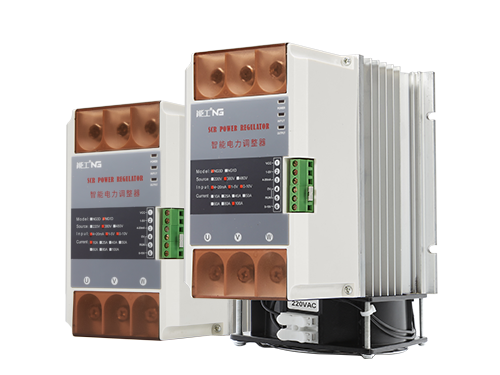

D Series Power Regulator【Three-phase 10-100A】

The D series economical three-phase intelligent power regulator combines the precise control of the power regulator with the economic applicability of the phase shift voltage regulator module. It is manufactured using digital design, high-quality components, and the latest microcomputer control technology, with outstanding functions. It can be adjusted automatically or manually to change the voltage on the load, thereby adjusting the output power. Realize stepless adjustment of load voltage from 0 to full grid voltage. Internal integration of powerful software modules
Widely used in electric heating power control, melt blown cloth equipment heating constant temperature control, transformer primary voltage regulation, variable resistance load, lighting regulation, and other occasions.

Product features:
Fully digital circuit control, 32-bit ARM chip, high stability
● No need for external auxiliary power supply and synchronous transformer
● Three phase automatic identification of phase sequence
Economic and beautiful, small size
● Fast processing and response speed, control accuracy better than 1%, resolution up to 2000:1
Low failure rate and long service life due to fewer parts on PCB board
● Multiple input methods do not need to be set
Adopt transformer multi-pulse trigger technology, with low harmonics and high power factor
Built-in 120 ℃ overtemperature protection, forced shutdown due to overtemperature
● External 220VAC fan
